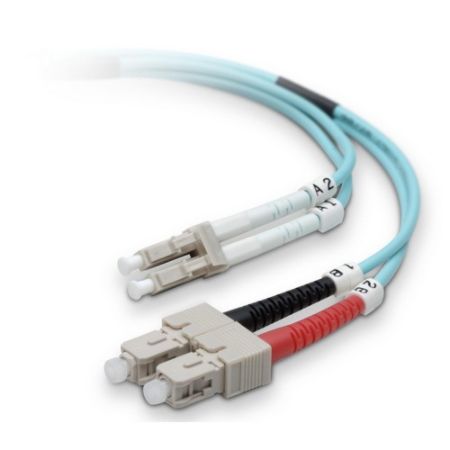

Belkin Fiber Optic Patch Cable Item # 593340
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
593340
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Belkins 10Gb Aqua fiber optic cables are backward compatible with existing network equipment and provide close to three times the bandwidth of traditional 62.5/125 multimode fiber. 10 Gigabit is rated for distances up to 300 meters using 850nm Vertical Cavity Surface Emmitting Lasers (VCSELs).
Product Details
| Item # | 593340 |
| Manufacturer # | 2744094 |
| Core/Cladding Diameter | 50/125 µ m |
| Additional Information | Designed for use in 10 Gigabit Ethernet applications; Backward compatible, works with legacy networks; Use with LED and VCSEL light sources; Ideal for campus and backbone applications; Maximum 300 Meters for 10Gb transmission speeds; All ferrules are ceramic for optimal data transmission; Top quality corning glass cores; PC polish to ensure optimal performance |
| Cable Characteristic | Patch Cable |
| Connector on First End | 2 x LC Male |
| Product Name | Fiber Optic Patch Cable |
| manufacturer | Belkin International, Inc |
| brand name | Belkin |
| Fiber Optic Mode | Multi-mode |
| Connector on Second End | 2 x SC Male |
| cable type | Fiber Optic |
| Connectors | 2 x LC/PC multi-mode - male |
| Connectors (Other Side) | 2 x SC/PC multi-mode - male |
| length | 49.21 ft. |
| Type of Fiber Optics | Multimode |
| Core / Cladding Diameter | 50 / 125 micron |
| color | aqua |
| warranty length | limited lifetime |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
Belkin's 10GB Aqua Fiber Optic Cables are backward-compatible with existing network equipment and provide close to triple the bandwidth of traditional 62.5/125 multimode fiber. 10 Gigabit is rated for distances of up to 300 meters using 850nm Vertical Cavity Surface Emitting Lasers (VCSELs).
Images
Specifications
| Connectors | LC/SC |
| Core/Cladding Diameters | 50mm/125mm |
| Max Attenuation (dB/km) at 850nm/1310nm: | 2.5/0.7 |
| Minimum Return Loss @ 850nm/1310nm | 20dB/20dB |
| Outer Diameter | 3mm |
